Colorado Foothills
A gate that opens through a Colorado winter, runs on solar when the grid goes down, and releases by hand when it has to.
What We Cover
Gate type, motor, power, and access control matched to slope, surface, and signal, not a flat suburban driveway.
Match gate type, motor, and controls to your driveway’s slope, width, and power supply.
No ground track means no freezing, no gravel binding, and no debris clog on unpaved driveways.

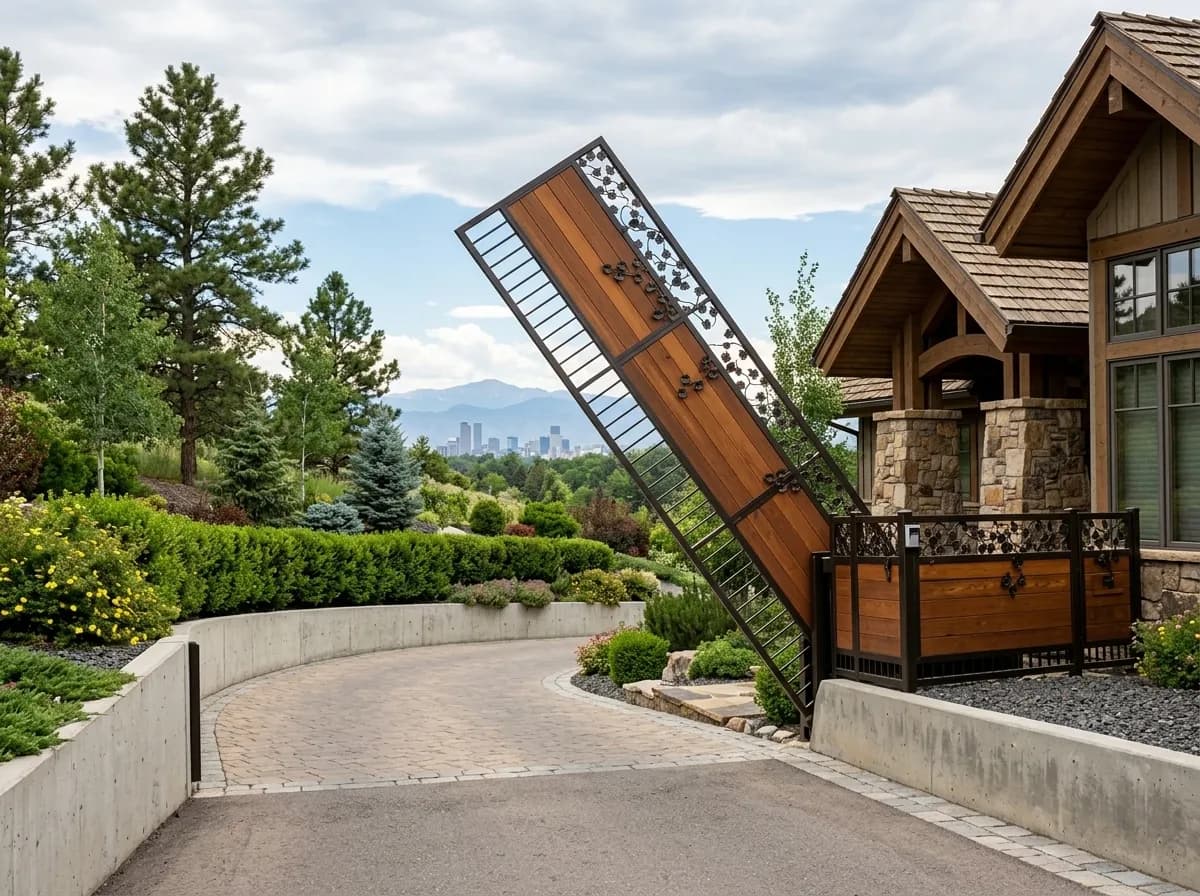

No side clearance needed, the panel rises straight up, clearing snow and steep approaches.
Panel, deep-cycle battery, charge controller, and control board sized to your gate weight and daily cycles.
Open your gate by phone call or app using cell signal alone, no broadband or landline needed.
Gate, motor, hardware, wiring, and site prep scoped as one project, sized to your opening width.
High-cycle motors and slope-rated operators handle long, steep driveways that overload standard openers.
Steel and aluminum construction with battery-backed operators and fail-safe manual release for fire zones.
Assess the existing gate, match motor and controls to it, and confirm reliable daily operation.
Heavy-duty slide and swing operators rated for high daily cycles and wide commercial vehicle clearance.
Cantilever, vertical-lift, swing, or slide matched to your opening.
Operator sized to gate weight, width, and daily cycle count.
Electrical rough-in run from power source to operator.
UL 325-compliant sensors included in every system scope.
Controls configured and tested before the installer leaves.
Open and close positions set and locked for the gate’s run.
Hand-operation confirmed as part of every final walkthrough.
Full movement and response test before the system goes live.
Built for the Failure Modes
The problems below are not edge cases at altitude. They are the first-winter outcome of hardware sized for a flat suburban driveway.
A ground-track slide gate collects snow, ice, and gravel in the channel, by January the leaf won’t move.

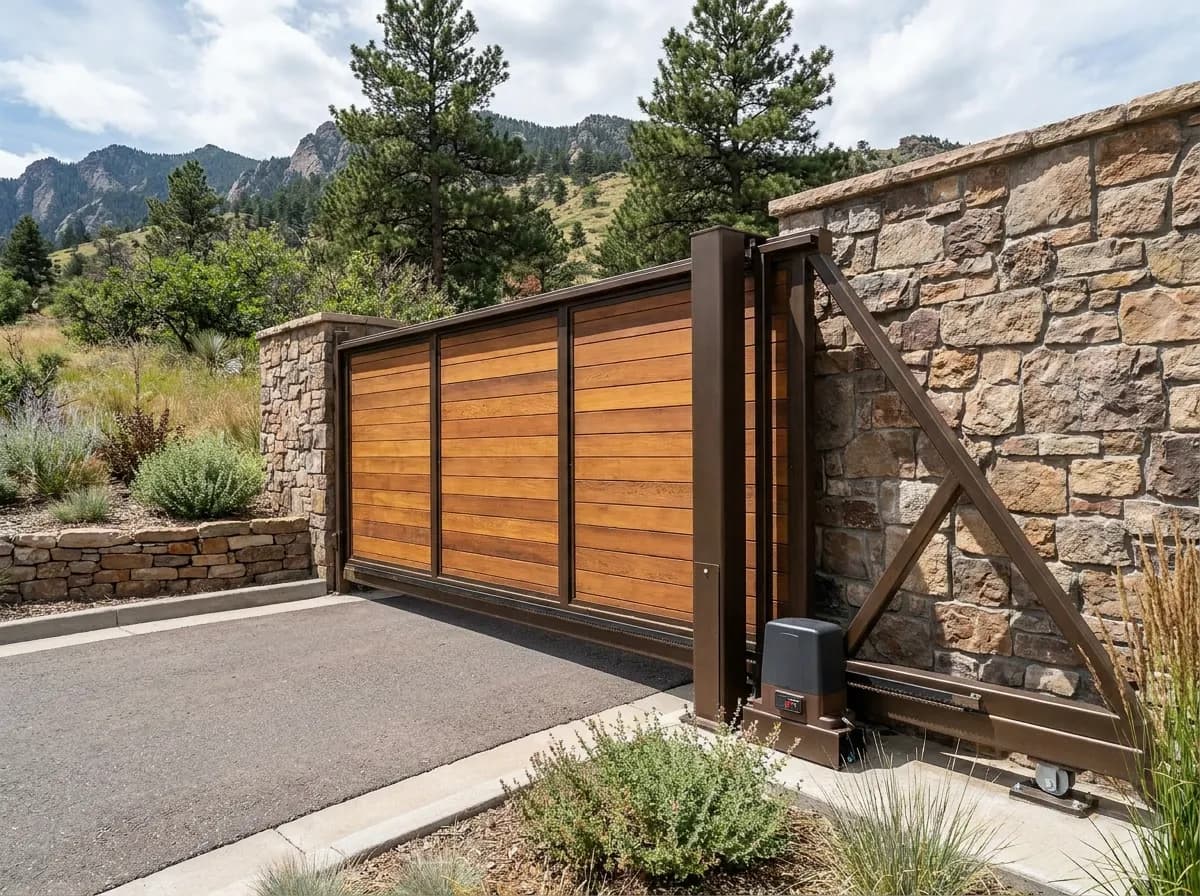

A cantilever slide gate rides on post-mounted wheel carriages with no track on the ground, so there is nothing to freeze or clog.
A standard AC operator goes dark the moment a winter storm drops the power, exactly when you need the gate most.
A solar array paired with a deep-cycle battery sized to the gate’s actual cycle count keeps the operator running through an outage.
Standard keypads rely on a landline or broadband connection that simply does not reach a remote mountain entrance.
A SIM-based controller receives a phone call or app command over cell signal alone, no broadband or landline required at the gate.
A gate with no manual release becomes a barrier during a wildfire evacuation when the battery and grid are both down.
Every system discussion includes a manual release so the entrance can be opened by hand in fire season or any power emergency.
Why Foothills Electric Gates
We connect Colorado Foothills property owners with local installers who have worked steep, remote, off-grid approaches, not installers who learned the site on your driveway.
Enquiries are matched to installers with hands-on experience in cantilever and vertical-lift configurations for steep, remote driveways.
Solar arrays and battery reserves are scoped to the gate’s actual weight and daily cycle count, not a generic panel size.
Photo eyes and safety edges are included in every system scope from the start, they are never optional add-ons quoted later.
Cellular access control is specified for sites with cell coverage but no broadband or landline at the gate entrance.
Describe the slope, surface, power, and signal, we connect you with a local installer who quotes the whole system for the site.
How It Works
01
Tell us the slope, surface, opening width, power source, and whether there is cell signal at the gate.
02
We connect you with a local installer who has worked the same site conditions and can quote the full system.
03
The installer scopes gate type, motor, power chain, access control, and safety hardware as one complete project.
How an Install Works
From site assessment to final cycle test, the steps that turn a driveway entrance into a working automated gate.
Every install starts with a site assessment: the installer measures the opening width, checks the slope and surface, confirms available power and cell signal, and selects the gate type that fits the approach. A steep or uneven driveway may rule out a swing configuration entirely, pointing toward a cantilever slide or vertical-lift setup instead. Gate weight, daily cycle count, and distance from the house all feed into motor and control board selection before any hardware is ordered.
Groundwork comes next. Posts are set, conduit is trenched from the power source to the operator location, and the gate hardware, hinges and arms for a swing gate, wheel carriages and counterbalance tail for a cantilever slide, is mounted and aligned. For off-grid sites, the solar array and deep-cycle battery are positioned and wired into the charge controller at this stage. Photo eye sensors and safety edges are installed on the gate posts as part of the standard scope, not as an afterthought.
With the gate hanging and the wiring complete, the installer mounts the gate motor, pairs the remote controls and keypad, and sets the open and close travel limits so the operator stops at the correct position every cycle. A cellular access controller is configured at this stage for sites running on cell signal alone. The final step is a full open-and-close cycle test: the installer runs the gate through multiple cycles, confirms the photo eyes and safety edges respond correctly, and demonstrates the manual release so the entrance can be opened by hand during a power outage or fire evacuation.
Pricing Estimates
| Job | Typical cost | Typical installed total |
|---|---|---|
| Basic residential electric gate | $1,900-$6,000 | $2,500-$5,500 |
| Standard automatic gate installation | $2,380-$8,000 | $4,000 |
| Custom or high-end electric gate | $5,000-$10,000 | $8,000-$13,000 |
Our Story
Foothills Electric Gates was built around the failure modes that matter up here: frozen ground tracks, grid-tied operators that go dark in a storm, and approaches too steep for a standard install. We take enquiries from property owners, HOAs, and developers and connect them with local installers who know the site.
About usWe exist to get mountain property owners a gate that works in real conditions, frozen ground, no grid power, steep approaches, by connecting them with local installers who know the site.
Every enquiry is matched to the actual site conditions, not a generic gate package.
Safety topics like manual release and battery backup are stated plainly, never overpromised.
The full system scope, gate, operator, power, controls, safety hardware, is discussed upfront.
Recommendations follow the site as it is: slope, surface, power source, and signal availability.
Areas We Cover
We match enquiries with local installers based on where the property is and what the site conditions require.
Enter your ZIP code and describe the entrance and we’ll connect you with a local installer who works in your area.
Request a QuoteTell us the slope, surface, power source, and distance from the house. We’ll connect you with a local installer who scopes the full system for your site.
